Champward CW-362 RS System
Full Pour

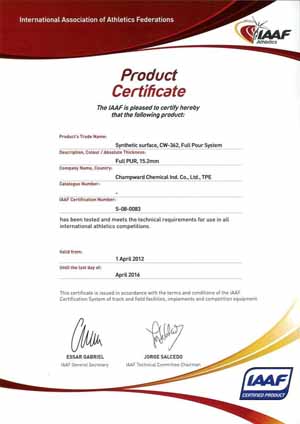

   The performance specifications of the System is accredited with the IAAF Certified Product
  for track surface.




   S-08-0083



Synthetic Surface of Champward CW-362 RS System

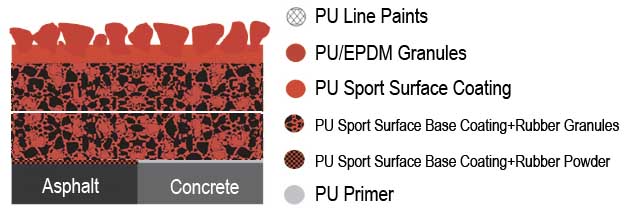

   Schematic Sections:


    Descriptions:
    This is a poured-in-site and non-porous Full Polyurethane System.  The base layer is
    installed by two methods: one, paved by adding rubber crumbs into well-mixed PU
    coatings and spread by notched squeegee or pave machine to control thickness; and the
    other one is spreading PU coating and broadcast rubber crumbs when wet and, after
    cure, removing those un-bound crumbs, repeat same procedure until the needed thickness
    reached.  After completion of the base layer, a granular texture surface of  3-5 mm is then
    installed.  When well-installed and properly maintained, a life span of 8 to 10 years can be
    expected.  The performance specifications of this System is  tested by IAAF certified
    laboratory and accredited with the IAAF Certified   Product for track surface.


    Need further information like "Materials Calculation Sheet" or "Installation Procedure",
    Please contact us!
